| Common Model | LiFePO4 | 14.6V6 A | 29.2V3A | 43.8V2A | 58.4V1.5A |
| lithium battery | 12.6V6A | 29.4V3A | 42V2A | 54.6V1.5A | |
| Lead-acid | 12V6A | 24V 3A | 36V2A | 48V1.5A | |
| Protections | 1.over current protection 2.short circuit protection 3.anti-revert current protection 4.over voltage protection 5.reverse polarity protection 6.anti-spark protection |
||||
| Applications | Electric Bicycles/Tricycles/Scooters /Power tools and other electric-related equipment | ||||
| Remark:We are manufacturer!We can customize the charging profile according to your battery and your requests. | |||||
Products

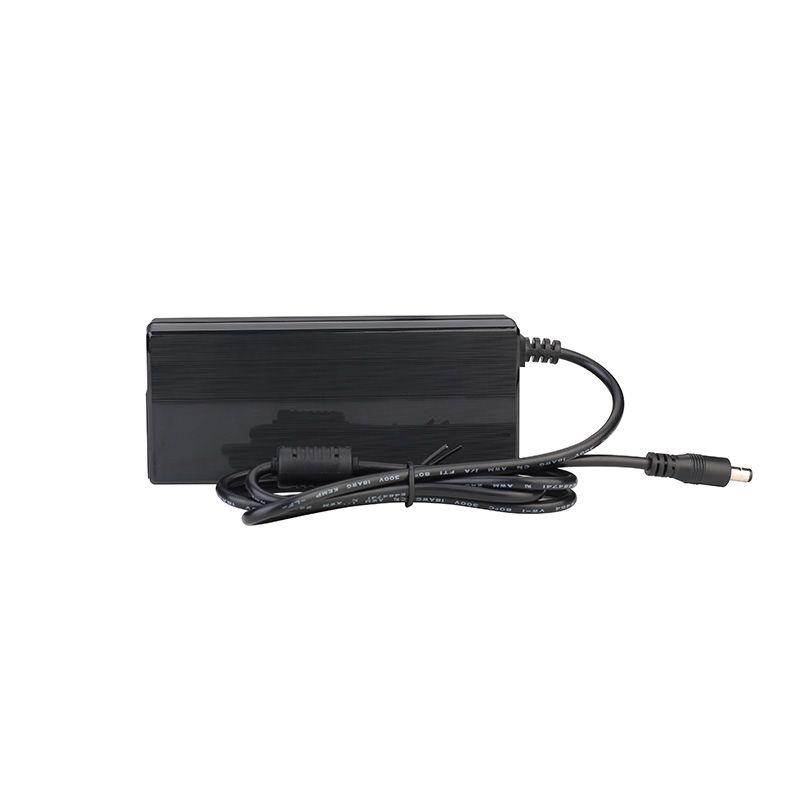

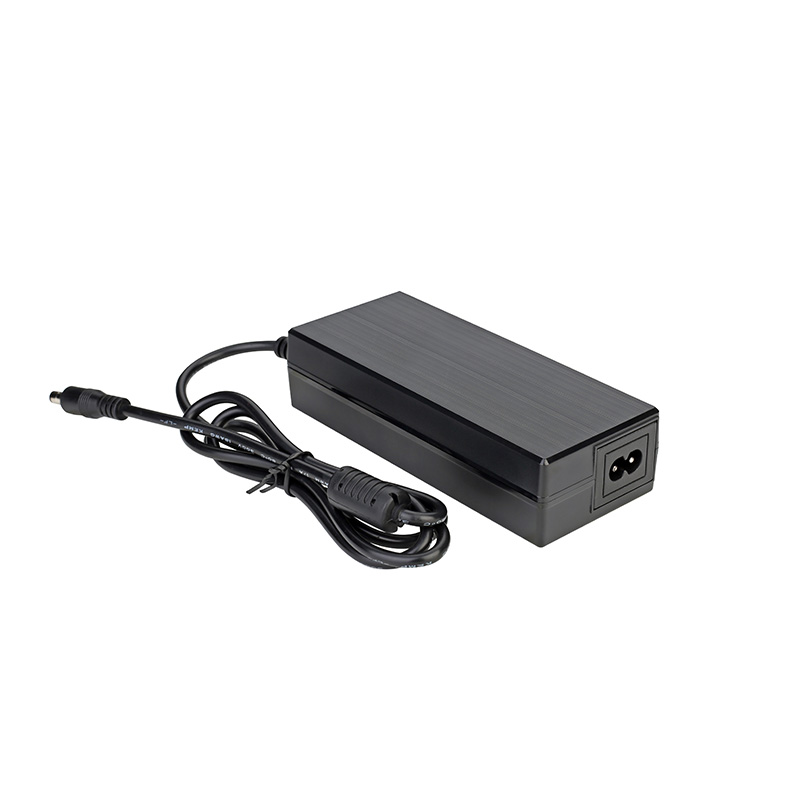

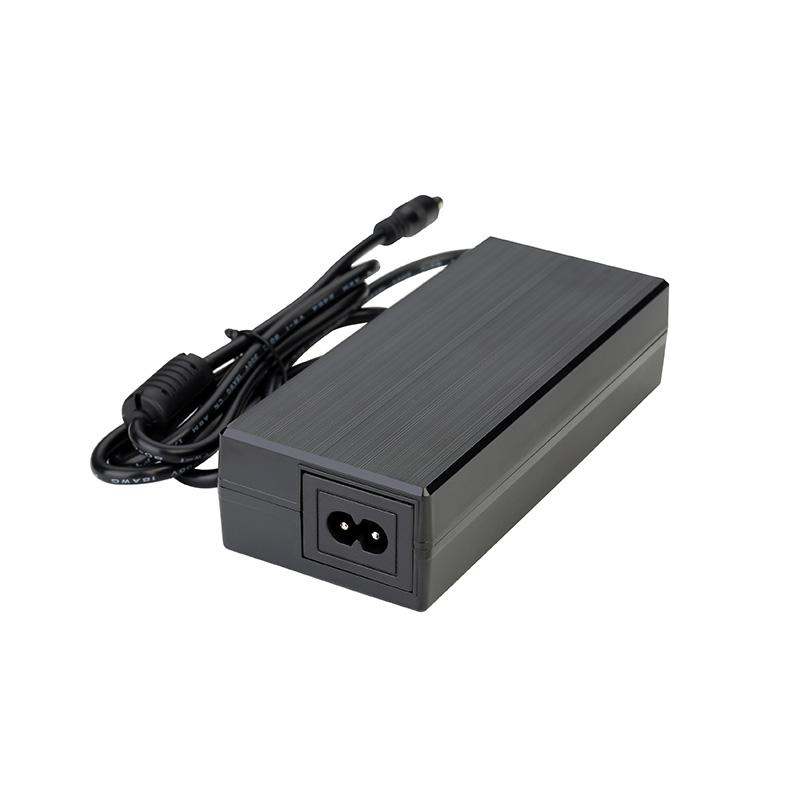

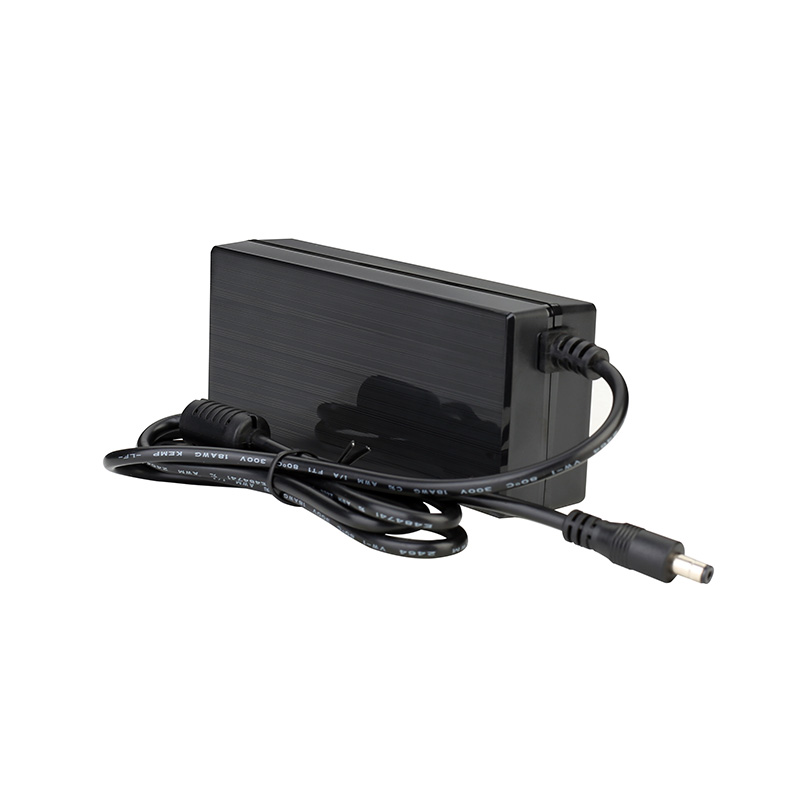

90W BATTERY CHARGER
90W BATTERY CHARGER
Fully automatic 4-stage charging process via MCU controller
Four LEDs indicate battery capacity between 25% and 100%
Global AC input 100V-240V
Charging stage: low current charging; Constant current charging; Constant voltage charging
| Rated input voltage: 100Vac-240Vac |
| Input Frequency: 50/60Hz |
| Input current: 2A MAX |
| Power Factor: ≥0.55 Input 230Vac@ Full load |
| Output Voltage: 10-58.8V |
| Output Curren: 0.1-6A |
| Full Load Efficiency: ≥85% Input 230Vac@ Full load |
| Operating Temerature: -10℃~40℃ |
| Storage Temperature: -40C~70℃ |
| Dimensuons(mm): 141*60*33.5 |
| Net Weight: 0.45Kg |
| certifications: CE/FCC/UL/GS/PSE/KC |
Common Output
