| Common Model | LiFePO4 | 14.6V18A | 29.2V12A | 43.8V8A | 58.4V6A | 73V5A | 87.6V4A |
| lithium battery | 12.6V18A | 29.4V12A | 42V8A | 54.6V6A | 71.4V5A | 84V4A | |
| Lead-acid | 12V18A | 24V12A | 36V8A | 48V6A | 60V5A | 72V4A | |
| Protections | 1.over current protection 2.short circuit protection 3.anti-revert current protection 4.over voltage protection 5.reverse polarity protection 6.anti-spark protection |
||||||
| Applications | Electric Bicycles/Tricycles/Scooters /Power tools and other electric-related equipment | ||||||
| Remark: We are manufacturer!We can customize the charging profile according to your battery and your requests. | |||||||
Products

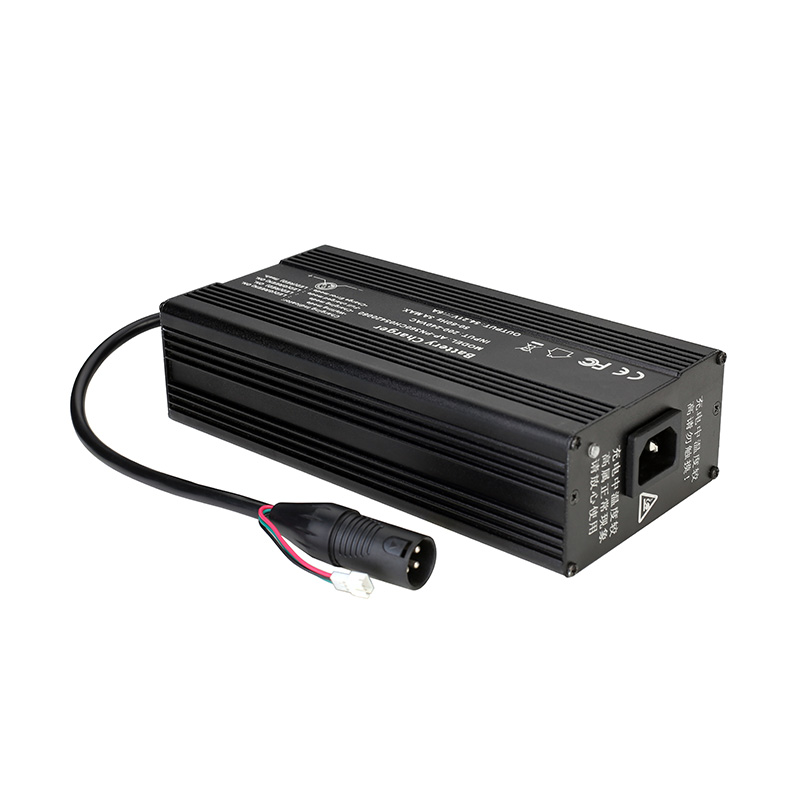

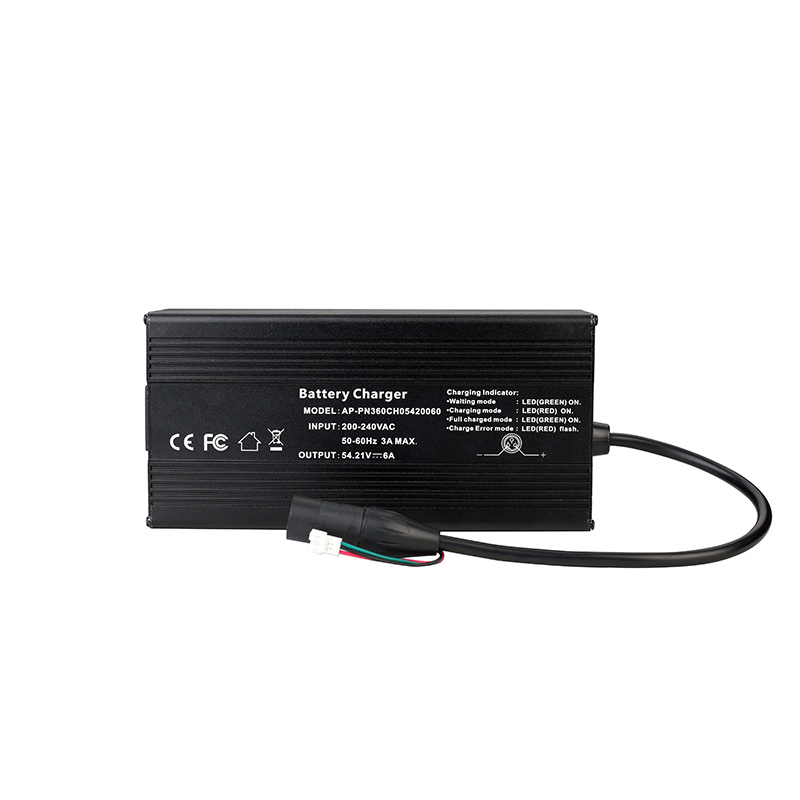

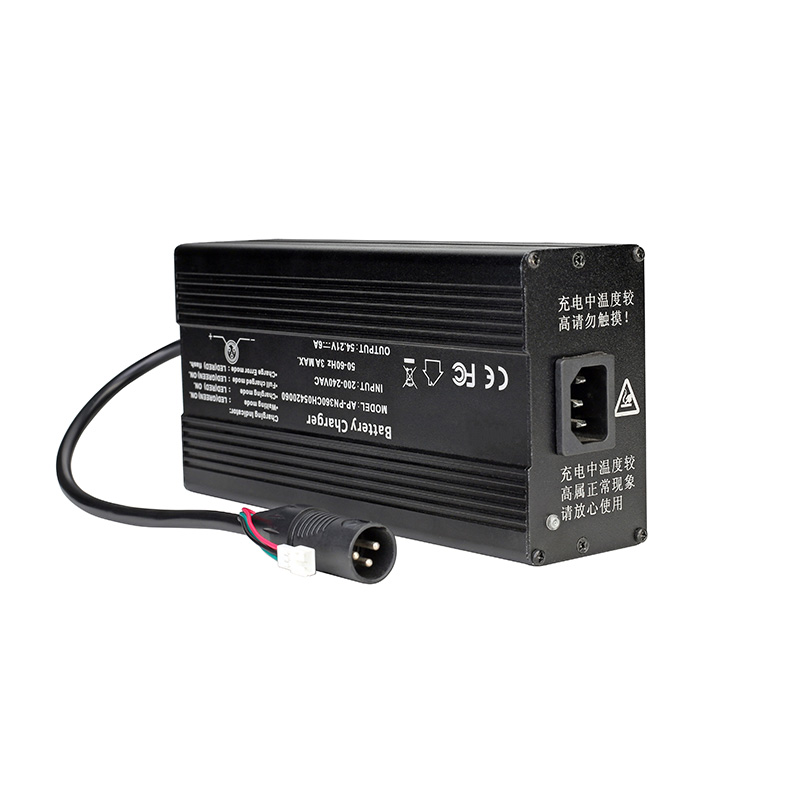

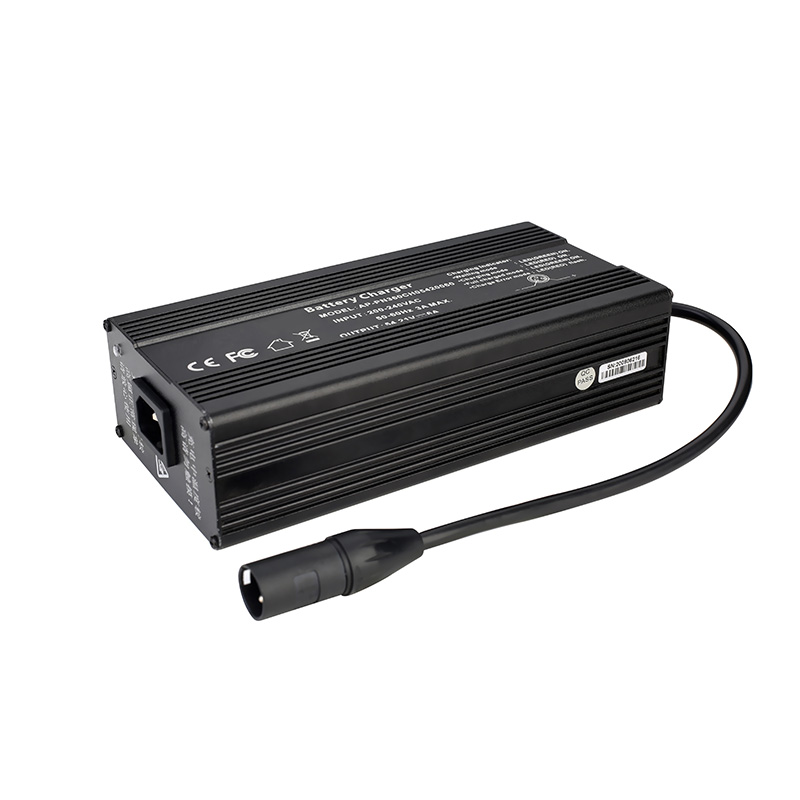

360W sealed waterproof type
360W sealed waterproof type
Fully automatic 4-stage charging process via MCU controller
Four LEDs indicate battery capacity between 25% and 100%
Global AC input 100V-240V
Charging stage: low current charging; Constant current charging; Constant voltage charging
| Rated input voltage：100Vac-240Vac |
| Input Frequency：50/60Hz |
| Input current：5A MAX |
| Power Factor：≥0.9 Input 230Vac@ Full load |
| Output Voltage：12V-90V |
| Output Curren：0.1-20A |
| Full Load:≥88% Input230Vac@Full load |
| Efficiency:Support 485 |
| OperatingTemerature：-10℃~40℃ |
| Storage Temperature：-40℃~70℃ |
| Waterproof class:Ip67 |
| Dimensuons(mm)：203*100*54 |
| Net Weight：1.8Kg |
| Certificate:CE/FCC/UL/GS/PSE/KC |
Common Output
