| Common Model | LiFePO4 | 14.6V130A | 29.2V100A | 43.8V68A | 58.4V50A | 73V45A | 87.6V39A |
| Lithium | 12.6V130A | 29.4V100A | 42V68A | 54.6V50A | 71.4V45A | 84V40A | |
| Lead-acid | 12V130A | 24V100A | 36V68A | 48V50A | 60V45A | 72V40A | |
| Protections | 1.over current protection 2.short circuit protection 3.anti-revert current protection 4.over voltage protection 5.reverse polarity protection 6.anti-spark protection |
||||||
| Applications | Lift Truck/Electric ATV/Lawn Mower/Electric Vehicle/Floor Care Machine/E-mobility Vehicles/Electric Sightseeing Bus and so on | ||||||
| Remark:We are manufacturer!We can customize the charging profile according to your battery and your requests. | |||||||
Products

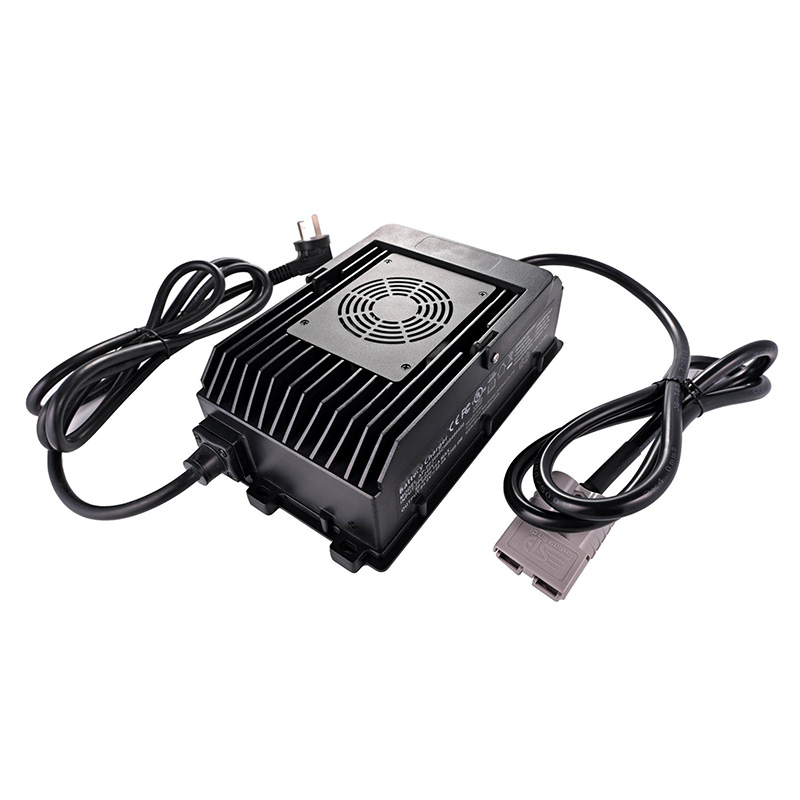

3600W sealed waterproof type
3600W sealed waterproof type
Fully automatic 4-stage charging process via MCU controller
Four LEDs indicate battery capacity between 25% and 100%
Global AC input 100V-240V
Charging stage: low current charging; Constant current charging; Constant voltage charging
| Rated input voltage：200Vac-240Vac |
| Input Frequency：50-60Hz |
| Input current：22A MAX |
| Power Factor：≥0.95 Input230Vac@Full load |
| Output Voltage：12V-90V |
| Output Curren：0.1-130A |
| Full Load：≥90% Input230Vac@Full load |
| Efficiency：Support CAN 485 |
| Operating Temerature：-10℃~40℃ |
| Storage Temperature：-40℃~70℃ |
| Waterproof class：Ip67 |
| Dimensuons(mm)：286*156*98 |
| Net Weight：4.5KG |
| Certificate：CE/FCC/CB/RoHS |
