| Common Model | LiFePO4 | 14.6V18A | 29.2V10A | 43.8V7A | 58.4V5A | 73V4A | 87.6V3A |
| lithium battery | 12.6V18A | 29.4V10A | 42V7A | 54.6V5A | 71.4V4A | 84V3A | |
| Lead-acid | 12V18A | 24V10A | 36V7A | 48V5A | 60V4A | 72V3A | |
| Protections | 1.over current protection 2.short circuit protection 3.anti-revert current protection 4.over voltage protection 5.reverse polarity protection 6.anti-spark protection |
||||||
| Applications | Electric Bicycles/Tricycles/Scooters /Power tools and other electric-related equipment | ||||||
| Remark:We are manufacturer!We can customize the charging profile according to your battery and your requests. | |||||||
Products

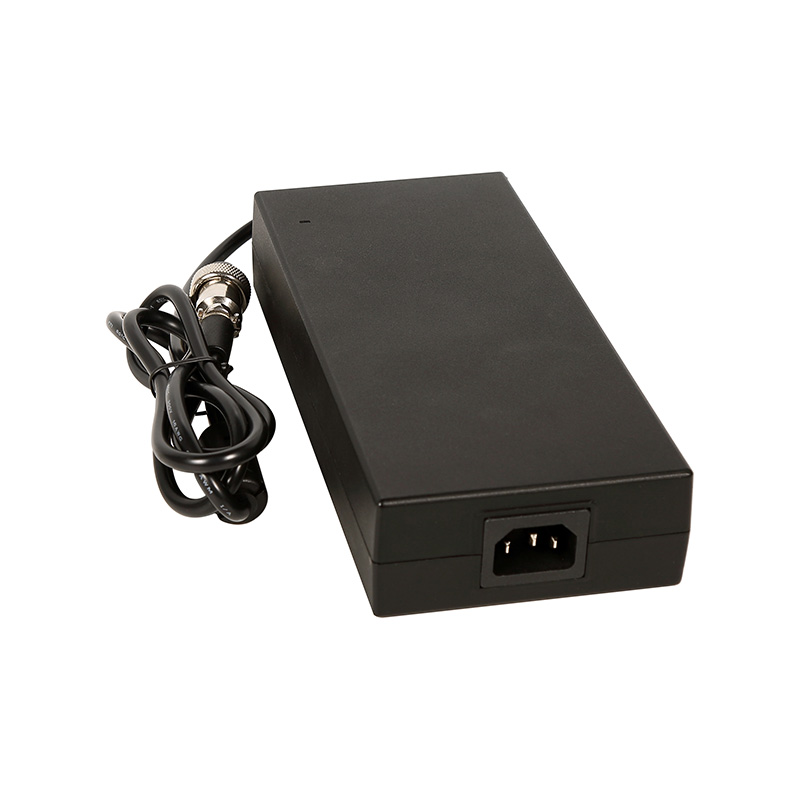

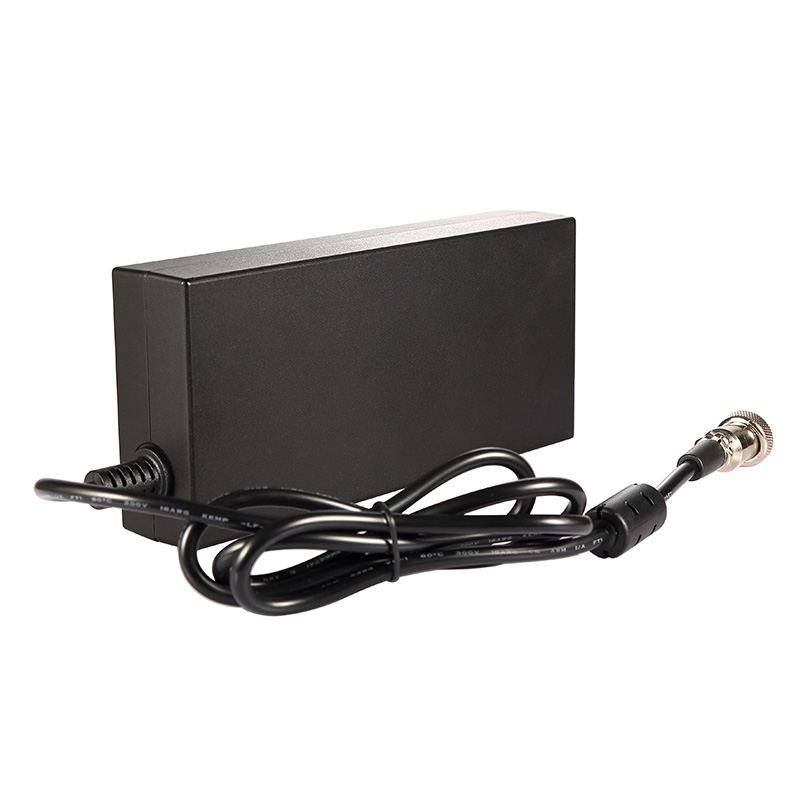

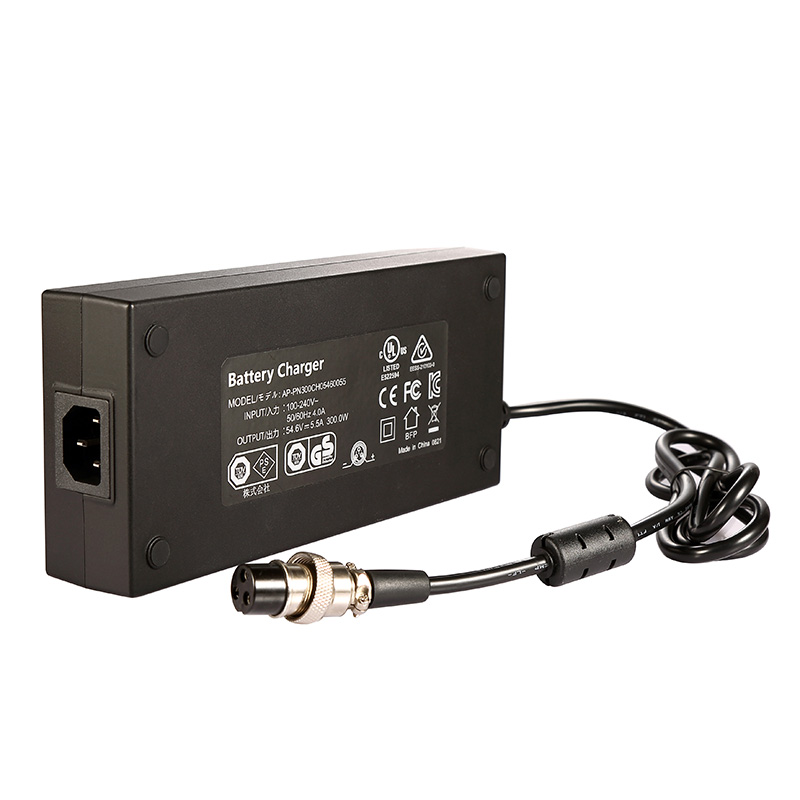

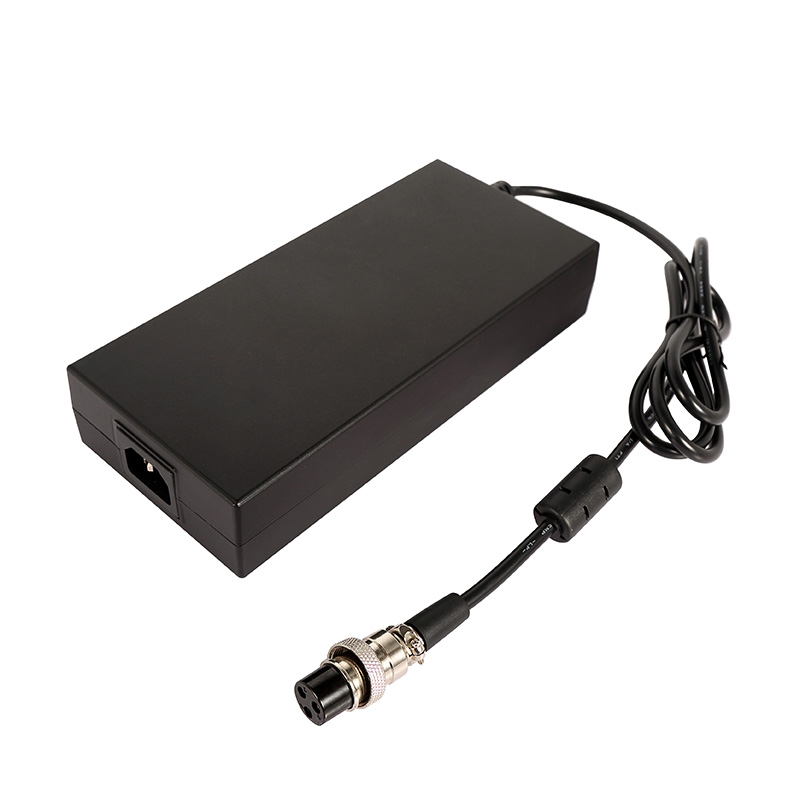

300W BATTERY CHARGER
300W BATTERY CHARGER
Fully automatic 4-stage charging process via MCU controller
Four LEDs indicate battery capacity between 25% and 100%
Global AC input 100V-240V
Charging stage: low current charging; Constant current charging; Constant voltage charging
| Rated input voltage: 100Vac-240Vac |
| Input Frequency: 50/60Hz |
| Input current: 5A MAX |
| Power Factor: ≥0.9 Input 230Vac@ Full load |
| Output Voltage: 10-90V |
| Output Curren: 0.1-20A |
| Full Load: ≥88% Input 230Vac@ Full load |
| Efficiency: Support 485 |
| Operating Temerature: -10°C~40℃ |
| Storage Temperature: -40C~70C |
| Dimensuons(mm): 205.4*93.9*41 |
| Net Weight: 1.2Kg |
| Certificate CB、CE、FCC、KC、KCC、SAA RCM C-TICK、UKCA、GS、UL、PSE、CCC |
Common Output
