| Common Model | LiFePO4 | 14.6V12A | 29.2V8A | 43.8V5A | 58.4V4A | 73V3A | 87.6V2.5A |
| lithium battery | 12.6V12A | 29.4V8A | 42V5A | 54.6V4A | 71.4V3A | 84V2.5A | |
| Lead-acid | 12V12A | 24V8A | 36V5A | 48V4A | 60V3A | 72V2.5A | |
| Protections | 1.over current protection 2.short circuit protection 3.anti-revert current protection 4.over voltage protection 5.reverse polarity protection 6.anti-spark protection |
||||||
| Applications | Electric Bicycles/Tricycles/Scooters /Power tools and other electric-related equipment | ||||||
| Remark:We are manufacturer!We can customize the charging profile according to your battery and your requests. | |||||||
Products

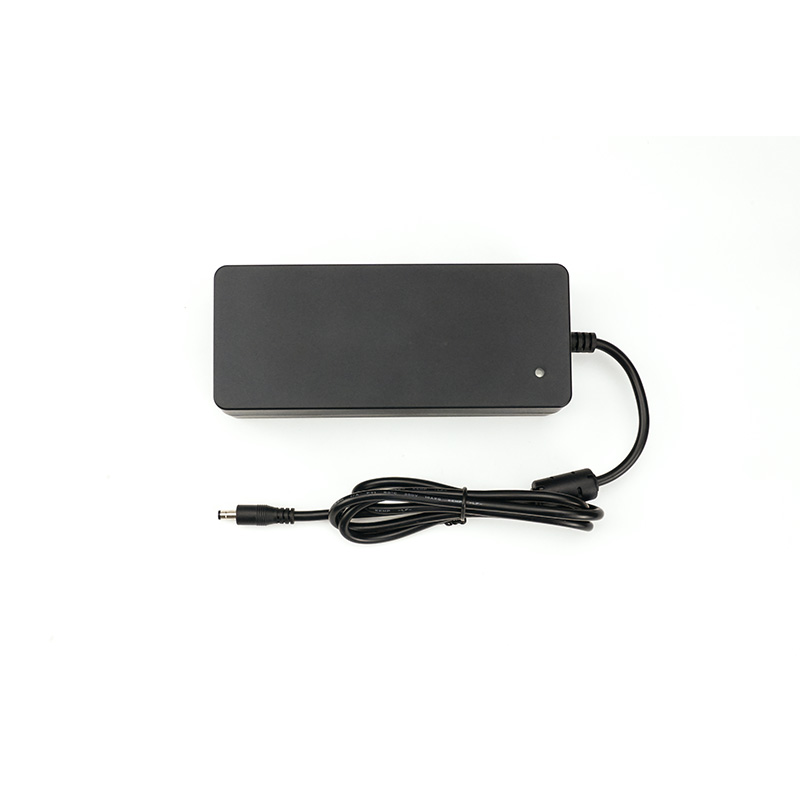

240W BATTERY CHARGER
240W BATTERY CHARGER
Fully automatic 4-stage charging process via MCU controller
Four LEDs indicate battery capacity between 25% and 100%
Global AC input 100V-240V
Charging stage: low current charging; Constant current charging; Constant voltage charging
| Rated input voltage: 100Vac-240Vac |
| Input Frequency: 50/60Hz |
| Input current: 5A MAX |
| Power Factor: ≥0.9 Input 230Vac@ Full load |
| Output Voltage: 10-88.2V |
| Output Curren: 0.1-12A |
| Full Load: ≥90%Input 230Vac@ Full load |
| Efficiency: Support 485 |
| Operating Temerature: -10C~40℃ |
| Storage Temperature: -40℃~70C |
| Dimensuons(mm): 187.5*77.8*41 |
| Net Weight: 1.1Kg |
| Certificate: CB、CE、FCC、KC、KCC、SAA RCM C-TICK、UKCA、GS、UL、PSE、CCC |
Common Output
