| Common Model | LiFePO4 | 14.6V10A | 29.2V6A | 43.8V4A | 58.4V3A | 73V2.4A | 87.6V2A |
| lithium battery | 12.6V10A | 29.4V6A | 42V4A | 54.6V3A | 71.4V2.5A | 84V2A | |
| Lead-acid | 12V10A | 24V6A | 36V4A | 48V3A | 60V2.5A | 72V2A | |
| Protections | 1.over current protection 2.short circuit protection 3.anti-revert current protection 4.over voltage protection 5.reverse polarity protection 6.anti-spark protection |
||||||
| Applications | Electric Bicycles/Tricycles/Scooters /Power tools and other electric-related equipment | ||||||
| Remark:We are manufacturer!We can customize the charging profile according to your battery and your requests. | |||||||
Products

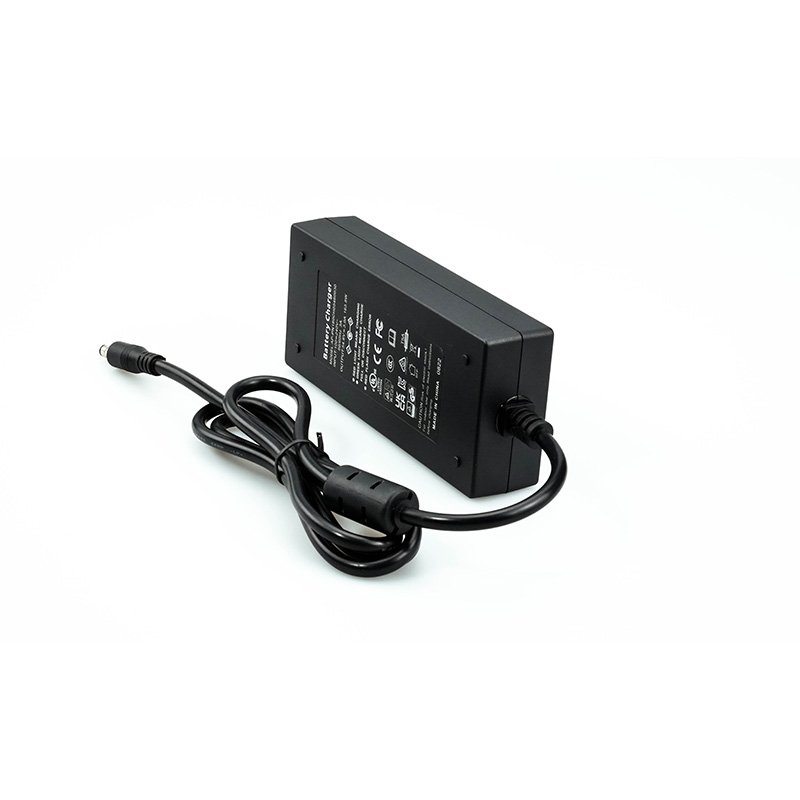

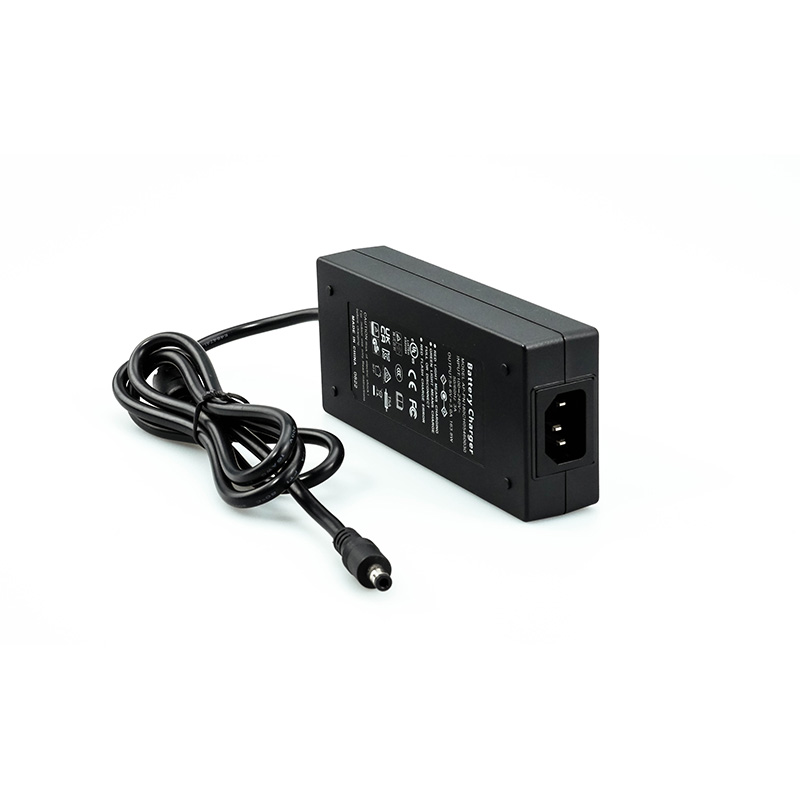

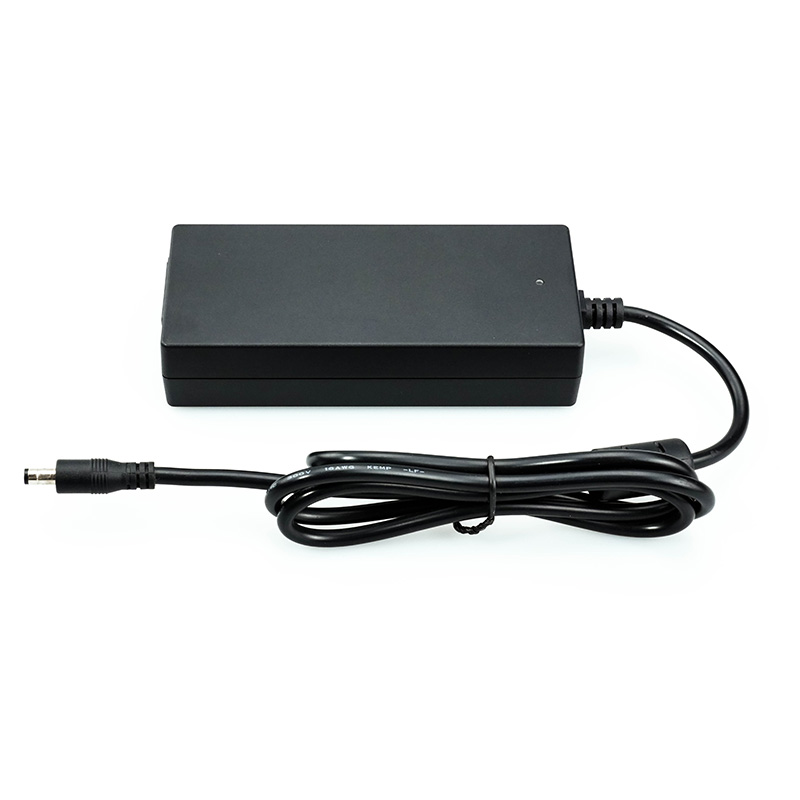

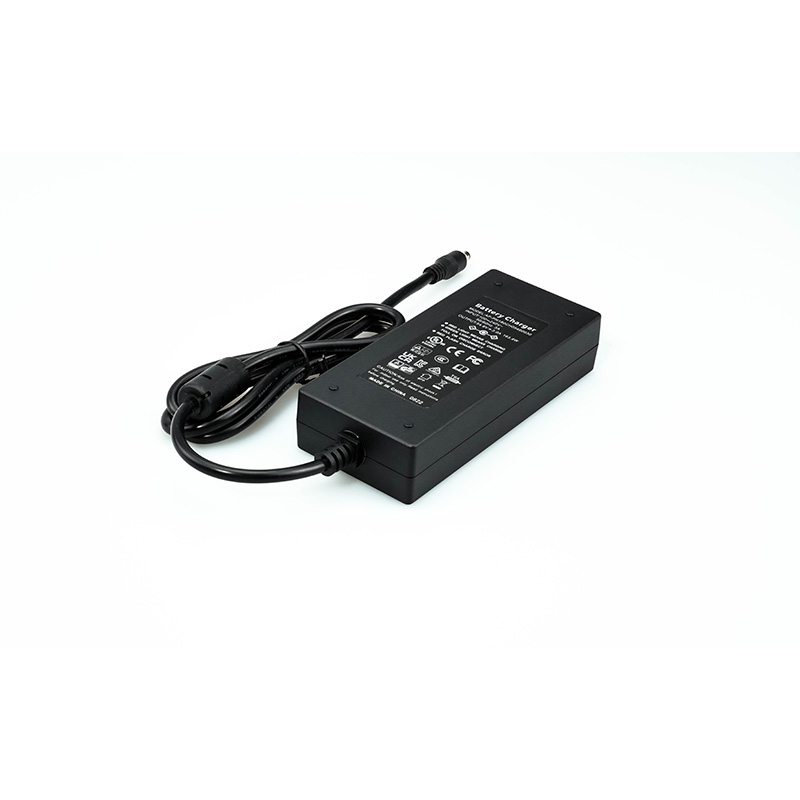

180W BATTERY CHARGER
180W BATTERY CHARGER
Fully automatic 4-stage charging process via MCU controller
Four LEDs indicate battery capacity between 25% and 100%
Global AC input 100V-240V
Charging stage: low current charging; Constant current charging; Constant voltage charging
| Rated input voltage: 100Vac-240Vac |
| Input Frequency: 50/60Hz |
| Input current: 2.5A MAX |
| Power Factor: ≥0.9 Input 230Vac@ Full load |
| Output Voltage: 10-88.2V |
| Output Curren: 0.1-10A |
| Full Load Efficiency: ≥90% Input 230Vac@ Full load |
| Operating Temerature: -10℃~40℃ |
| Storage Temperature: -40℃~70℃ |
| Dimensuons(mm): 145.8*64.8*31 |
| Net Weight: 0.5Kg |
| Certificate: CE/FCC/UL/GS/PSE/KC |
Common Output
