| Common Model | LiFePO4 | 14.6V40A | 29.2V40A | 43.8V27A | 58.4V20A | 73V16A | 87.6V14A |
| Lithium | 12.6V40A | 29.4V40A | 42V28A | 54.6V22A | 71.4V16A | 84V14A | |
| Lead-acid | 12V40A | 24V40A | 36V27A | 48V20A | 60V16A | 72V14A | |
| Protections | 1.over current protection 2.short circuit protection 3.anti-revert current protection 4.over voltage protection 5.reverse polarity protection 6.anti-spark protection |
||||||
| Applications | Electric motorcycle/Golf cart/Sightseeing car/Cleaning car/Low speed car and so on | ||||||
| Remark: We are manufacturer!We can customize the charging profile according to your battery and your requests. | |||||||
Products

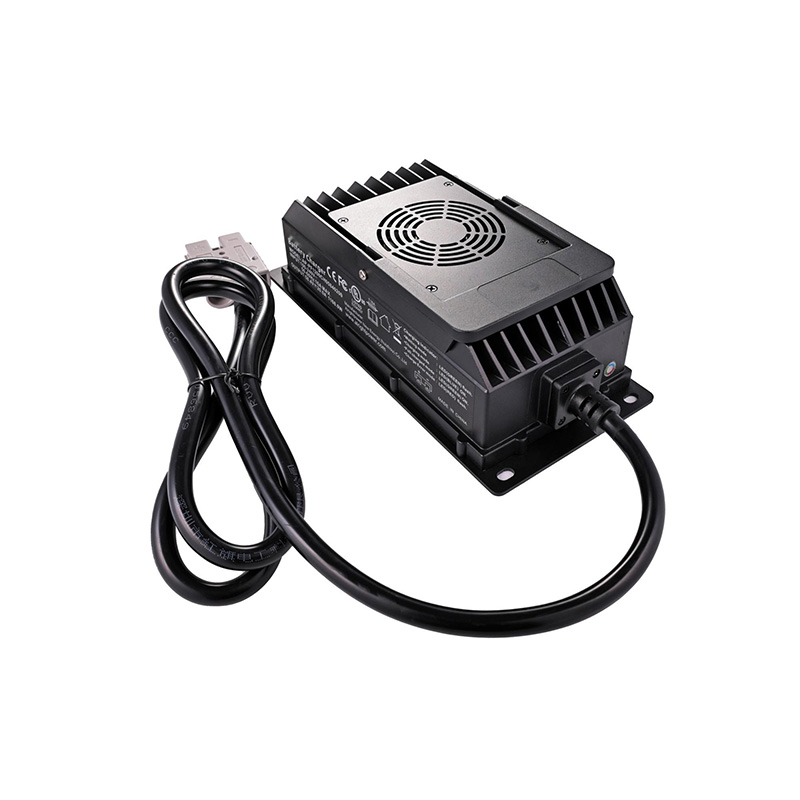

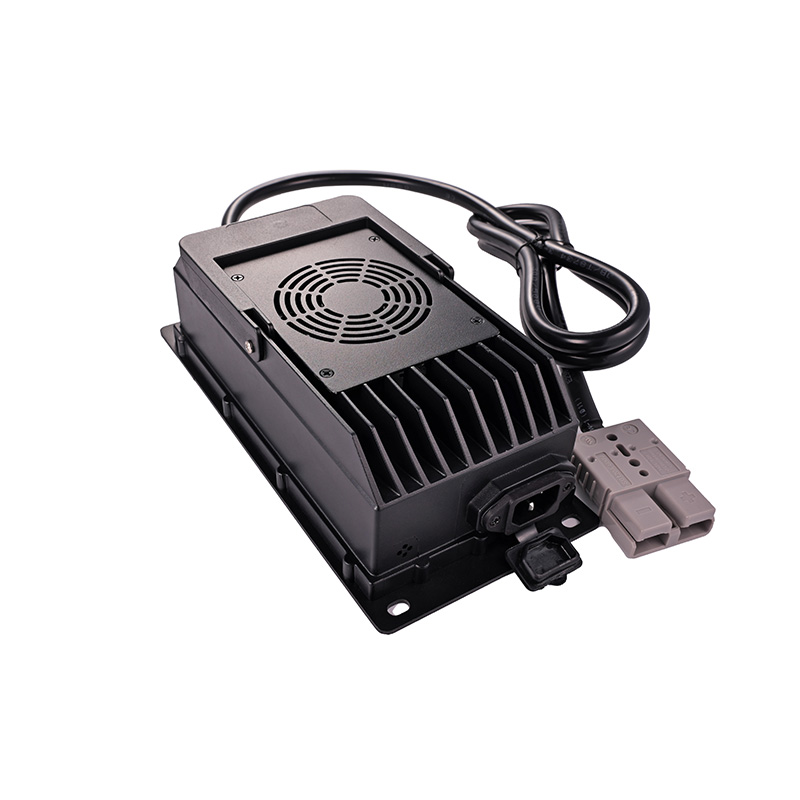

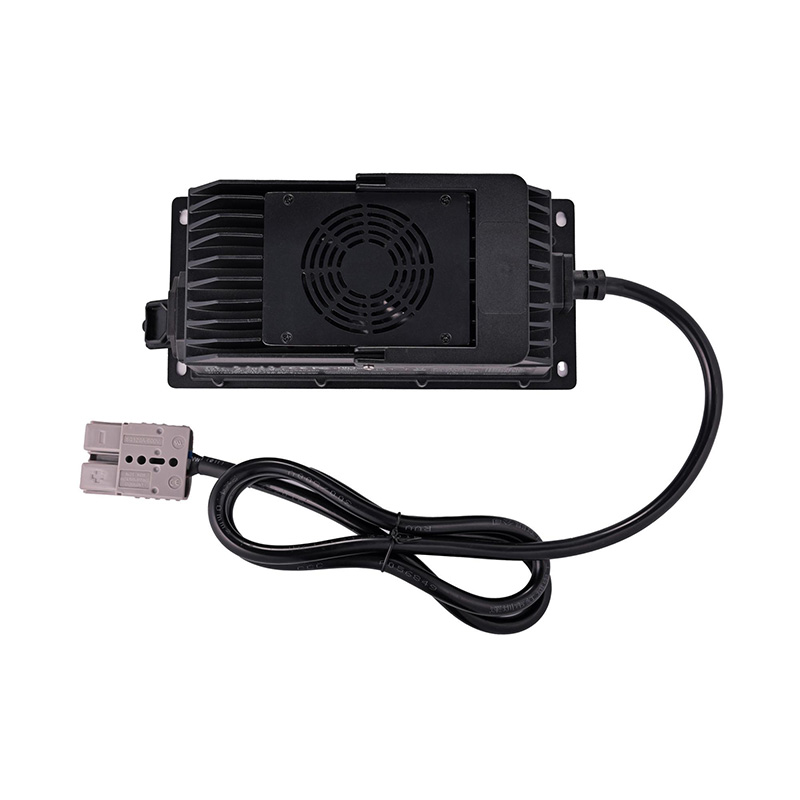

1200 W sealed waterproof type
1200 W sealed waterproof type
Fully automatic 4-stage charging process via MCU controller
Four LEDs indicate battery capacity between 25% and 100%
Global AC input 100V-240V
Charging stage: low current charging; Constant current charging; Constant voltage charging
| Rated input voltage: 100Vac-240Vac |
| Input Frequency: 50-60 Hz |
| Input current：16A MAX |
| Power Factor：≥0.95 Input230Vac@Full load |
| Output Voltage：12V-90V |
| Output Curren：0.1-40A |
| Full Load：≥90% Input230Vac@Full load |
| Efficiency：Support CAN 485 |
| Operating Temerature: -10℃~40℃ |
| Storage Temperature: -40℃~70℃ |
| Waterproof class: Ip67 |
| Dimensuons(mm): 230*122*78.2 |
| Net Weight：3.5KG |
| Certificate：CB CE FCC UL KC SAA GS |
Common Output
